Zero Distortion Zero Physical Dies Sealed Anti-Fray Edges
Direct Factory Pricing CE Certified · EN 60825-1 Compliant European Support & Air-Express Parts
CUT SPEED (RACK & PINION)1,500 mm/s Max
DUAL-SYNC™ EFFICIENCY+40% to +70% Net Yield
RedShift VisionInstant <0.1s Flash Capture · Dual-Sync™ Twin Gantries · 1,500 mm/s
// THE OLD WAY VS. REDSHIFT ADVANTAGE
Eliminate dye-sub shrinkage errors, frayed edges, manual blade trimming, and multi-day die tooling across your cutting room.

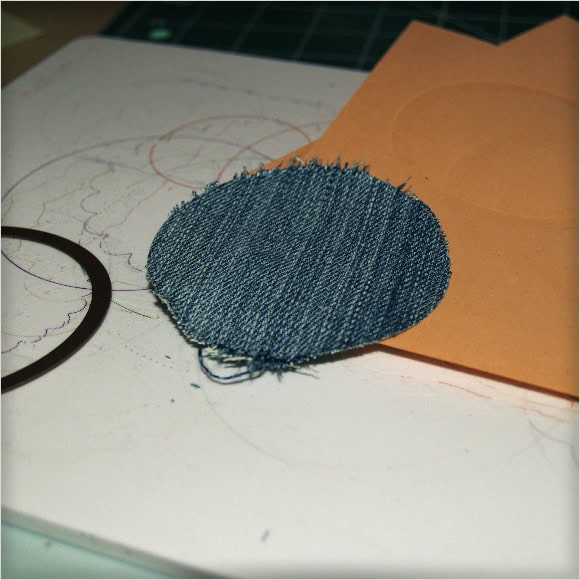

THE OLD WAY Rotary Knives / Steel Rule Dies / Manual Shears
THE REDSHIFT WAY LineScan™ Vision Laser Automation
// PROPRIETARY ENGINEERING ASSETS
Engineered from the ground up for dye-sublimated sportswear, technical textiles, and elastic knits.
01 / OPTICS Sub-Millimeter
Offers instant Area Scan (<0.1s capture) for maximum cycle speed, or LineScan™ (~3s scan) for ultra-high scanning precision. LineScan 100% eliminates peripheral fisheye distortion with 0.02 mm CIS optical resolution. Supports both automated AI contour extraction for printed rolls and direct CAD/DXF pattern vector cutting for solid fabrics.
Zero Optical Distortion 0.021 mm CIS Resolution Vision & DXF Dual Workflow

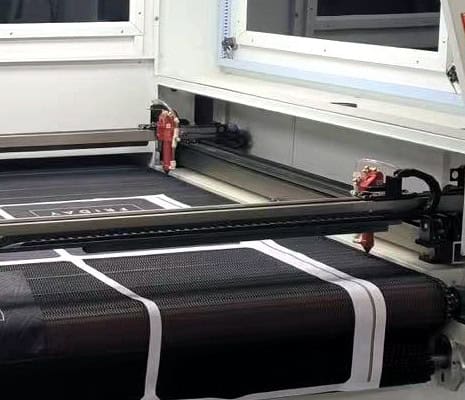

02 / KINEMATICS Production Boost
Two independent gantries with dedicated servo drives partition the bed into parallel cutting zones. Reduces jersey panel cutting time from 40s to 25s, increasing net factory output by 40% to 70% with active anti-collision control.
Independent Twin Gantries Virtual Boundary Anti-Collision +40% to +70% Net Yield

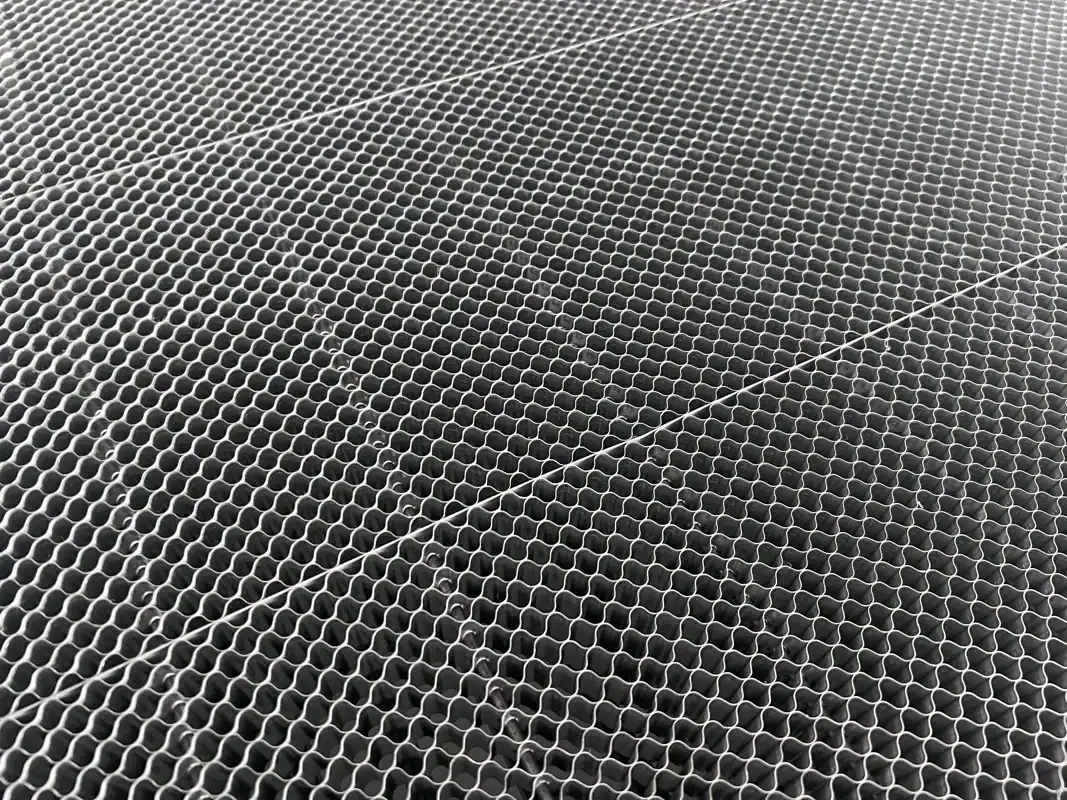

03 / AERODYNAMICS Clean-Edge
High-static down-draft blowers and segmented vacuum ducts pull fabric flat against the honeycomb bed. Fumes are evacuated downward the instant the beam pierces the ply—preventing smoke drift and eliminating yellow scorch marks on white fabrics.
How PureEdge™ Works:
① Segmented Vacuum Zones: Focuses high negative static pressure directly below the active laser cutting zone.
② Instant Fume Evacuation: Pulls synthetic smoke downward before it can drift across white fabric.
③ Honeycomb Bed Support: High-rigidity matrix prevents flutter and eliminates soot scorch marks.

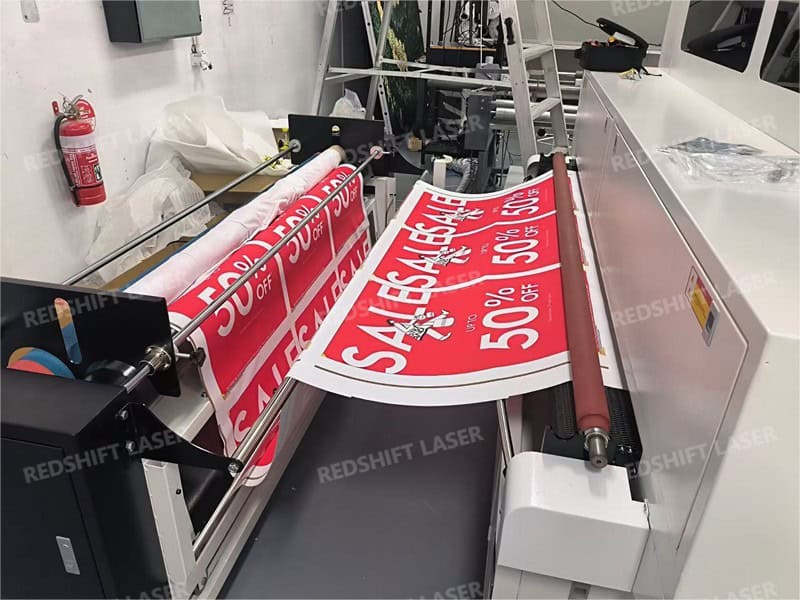

04 / ROLL FEEDING Stretch-Free
Engineered for Spandex, Lycra, and elastic knits. Eliminates conveyor pull drag to prevent fabric elongation during feeding and subsequent post-cut panel shrinkage.
How TrueFeed™ Works:
① Motorized Roll Cradle: Proactively unwinds roll stock without mechanical conveyor drag.
② Infrared Slack Sensor: Regulates speed to keep fabric in a 100% relaxed catenary drape before cutting.
③ Expanding Rollers: Flatten curled edges and wrinkles without longitudinal tension.
// OPTICAL CONTOUR EXTRACTION
Cut printed contours without fiducial marks or manual templates. High-speed optics capture physical roll layouts, while AI algorithms automatically compensate for thermal shrinkage.
STANDARD CONFIGURATION
High-resolution matrix sensor for rapid, full-bed exposure in high-volume apparel production.
Imaging Time
< 0.1 s
Recognition Mode
Instant Shot
FLAGSHIP ZERO-DISTORTION
Continuous linear scanning that 100% eliminates optical fisheye distortion and wide-angle perspective warp.
Scan Time
~ 3.0 s
Optical Distortion
0.00% Zero
STEP 01
TrueFeed™ delivers roll fabric in a 100% relaxed state without stretch.
STEP 02
Area (<0.1s) or LineScan™ (3s) camera captures real-world roll contours.
STEP 03
AI extracts graphic boundaries and auto-compensates for shrinkage.
STEP 04

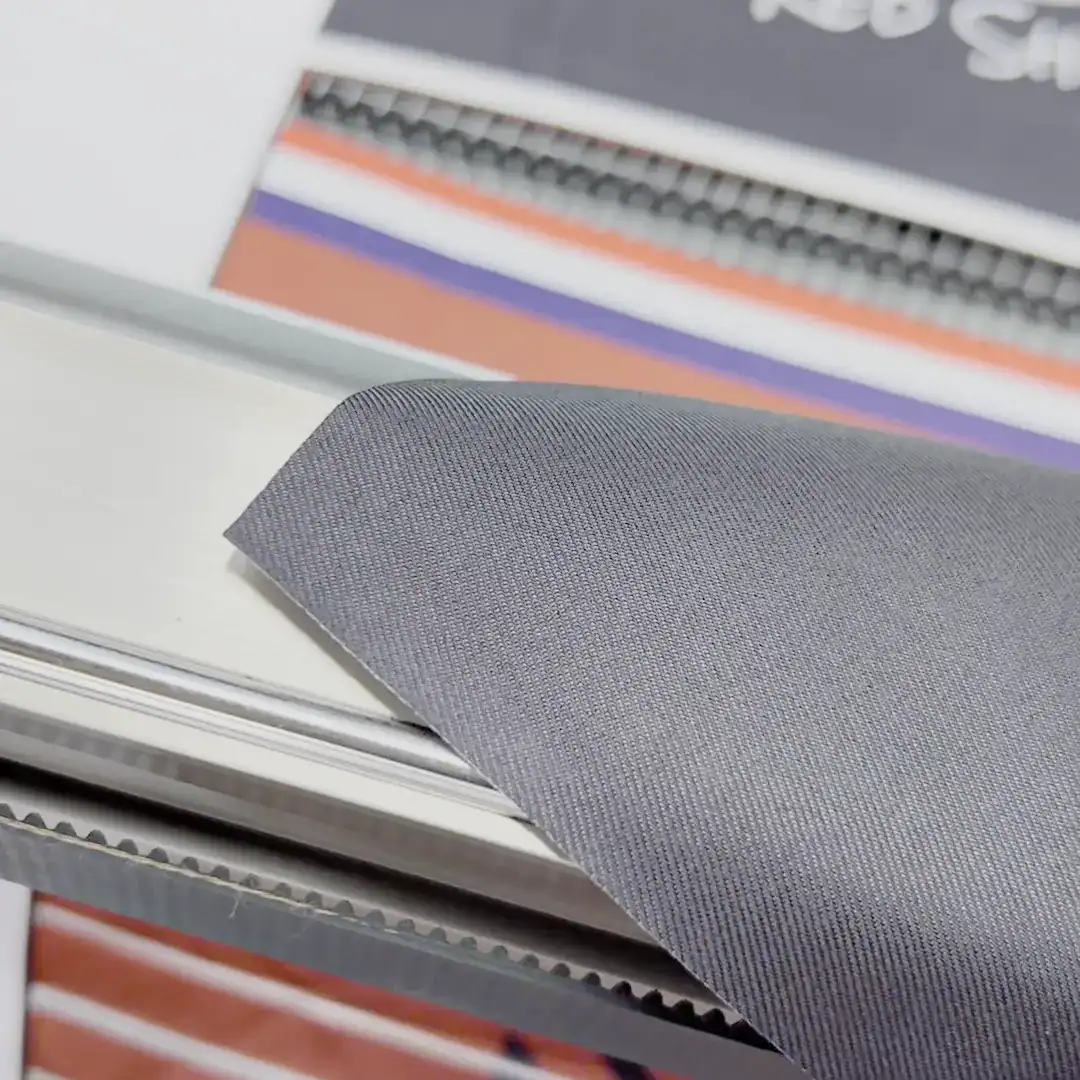

Single or Dual-Sync™ heads cut with a clean, sealed 0.1mm edge.
// ON-PAGE OPTICAL VIDEO BENCHMARK
Compare instant Area Scan full-bed exposure against ultra-precision Contact Image Sensor (CIS) LineScan™ scanning directly on printed fabrics.
// VISION SPEED & MOTION BENCHMARK
Head-to-head speed test: 1,500 mm/s ground rack & pinion vs. 500 mm/s belt drive cutting sublimated sportswear fabric.
▶ Explore All Laser Performance Tests on YouTube (@redshiftlaser) →

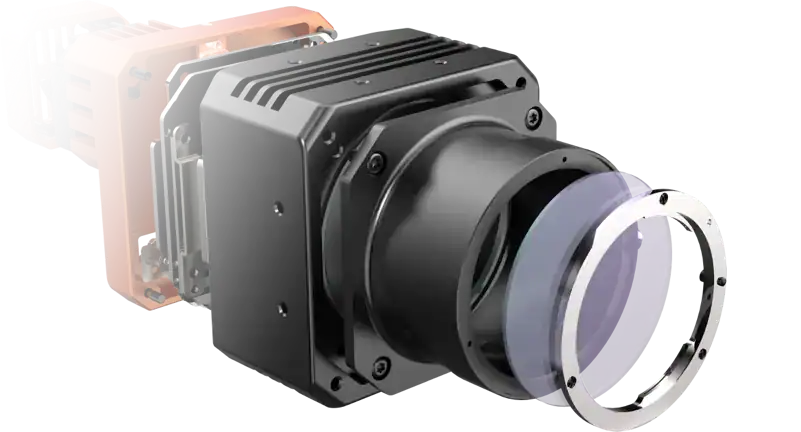

AREA SCAN OPTICS (<0.1S SHOT)
High-speed full-bed image capture in less than 0.1 seconds. Automatically isolates jersey contours directly from sublimation ink without printed marks.

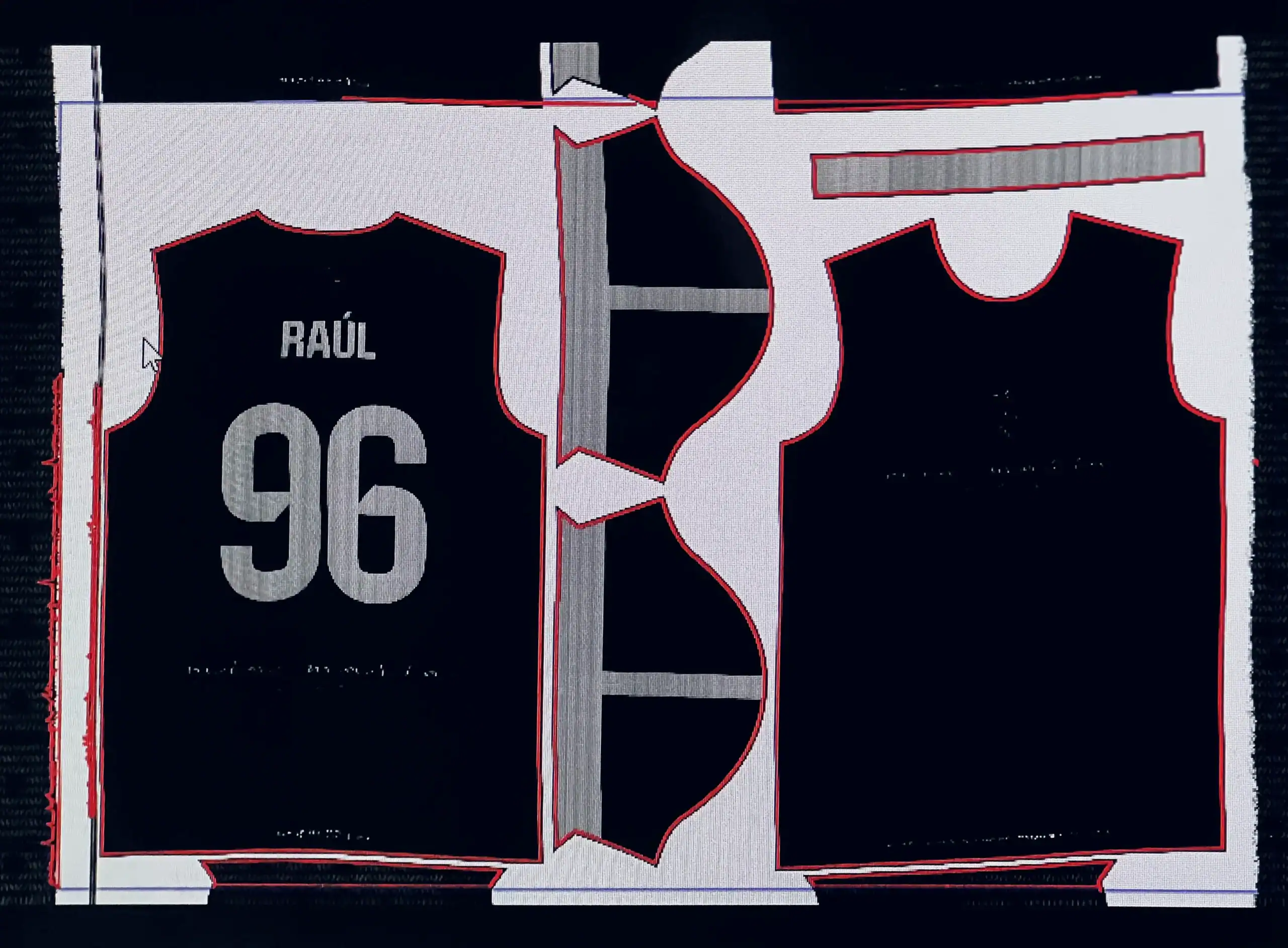

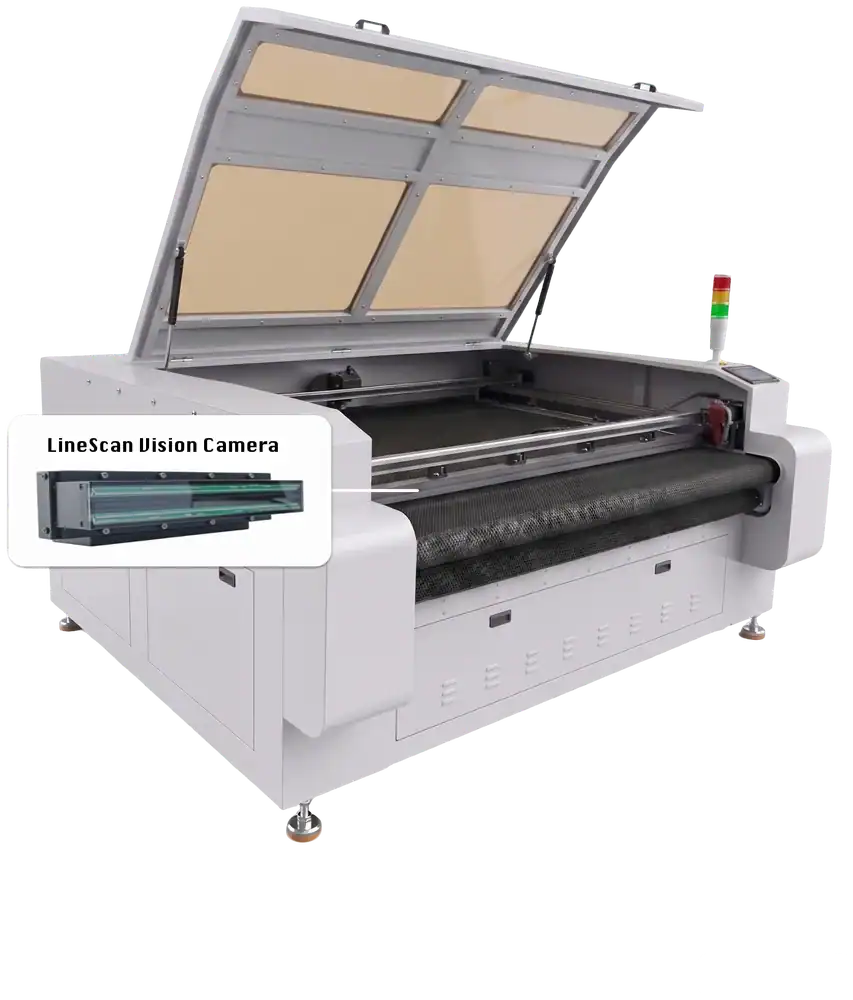

LINESCAN™ CIS SENSOR (~3S SCAN)
0.021mm Contact Image Sensor scans line-by-line across full roll widths. 100% eliminates fisheye distortion, guaranteeing seam-matched precision.
// FACTORY FLOOR BENCHMARK
Verified plant data: independent twin gantries and dynamic collision avoidance deliver a proven 40% to 70% net output increase over single-head cutters.
* Benchmarked on a sublimated cycling jersey back panel. Dedicated servo drives partition cut vectors, eliminating cross-bed travel lag.
25s
Cycle Time Per Panel
37.5% faster cycle time compared to 40s on single-head units.
+40% to +70%
8-Hour Shift Net Gain
Daily output jumps from ~650 pieces to 1,000–1,150 pieces.
● Dynamic Virtual Collision Enclosure
Both gantries run proprietary spatial anti-collision algorithms. When cutting overlapping or asymmetrical pieces, the controller dynamically modulates axis acceleration to prevent interference, ensuring full-speed operation with zero collision risk.
// 70% MATERIAL SPECIALIZATION
Non-contact thermal cutting seals edges cleanly with zero charring or fraying across sportswear, banners, leather, and embroidery.
POLYESTER / SPANDEX / MESH
Cleanly sealed armholes and necklines. Perforated mesh knits retain full elasticity without fraying or heat distortion.
BACKLIT TEXTILE / TEAR-DROP FLAGS
Continuous roll cutting for long banner runs. Fused thermal edges eliminate manual hemming and resist outdoor wind stress.
ALCANTARA / MICROFIBER LEATHER
Non-contact CO₂ laser beam vaporizes and seals synthetic leathers and Alcantara with zero edge carbonization or stiffness, preserving soft tactile handfeel.

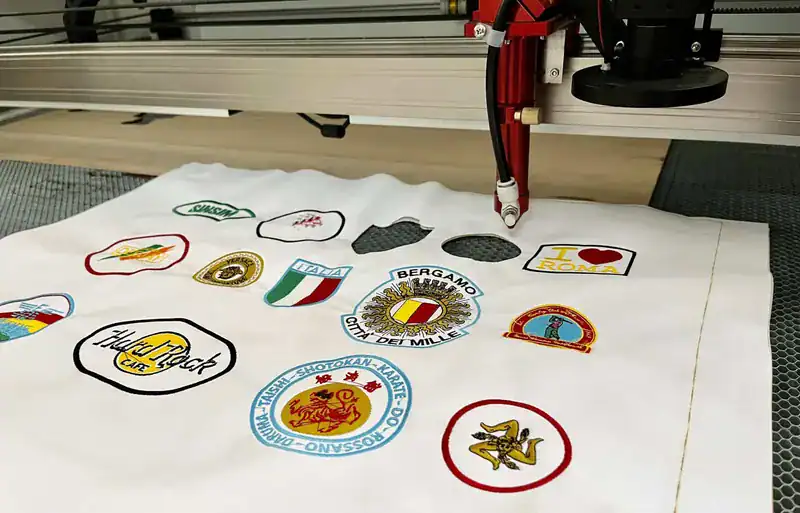

TWILL PATCHES / WOVEN BADGES
LineScan™ scans hundreds of scattered badges in 3s, cutting crisp 0.5mm borders around embroidery with zero fiber pull.
// EUROPEAN BUILD STANDARDS
Built for 24/7 industrial production with heavy annealed steel weldments, ground helical gearing, and CE-compliant electrical safety.
01 / BED CONSTRUCTION
Heavy stress-relieved steel frame with high-temperature annealing eliminates weld stress, ensuring lifetime structural rigidity and zero deformation under 1.2G acceleration.
02 / MOTION SYSTEMS
Helical Rack & Pinion (1,500 mm/s): Zero-backlash planetary reducers for 24/7 volume.
Belt Drive (500 mm/s): Cost-effective steel-cord timing belts for quiet operation.
03 / LASER SOURCES
DC Glass Tube: Cost-effective sealed CO₂ source for standard garment and textile cutting.
CO₂ RF Metal Tube: 20,000+ hour operational life with narrow spot size and ultra-fast pulse modulation for fine technical knits and leather.
04 / ELECTRICAL CONTROLS
LSZH flame-retardant wiring, optocoupler-isolated low/high voltage channels, industrial contactors, and hardware-level dual E-stop interlocks.
05 / SAFETY ENCLOSURE
Designed to meet EN 60825-1 laser safety standards. Class 1 laser enclosure with certified filter observation windows and safety interlocks that immediately disable the beam upon opening.
06 / DRAG CHAIN CABLING
High-flex double-shielded drag chain cables rated for over 10 million reciprocating cycles inside heavy-duty silent drag chains, eliminating fatigue failure.
// INTERACTIVE SPECIFICATION MATCHER
Select your fabric type and typical roll width below for an instant machine and optics configuration recommendation.
1 Select Your Fabric & Cutting Requirement:
2 Select Your Typical Roll Width:
RECOMMENDED CONFIGURATION
Standard 1.6m roll workhorse. Features instant Area Scan camera (<0.1s) and Dual-Sync™ twin heads for +40% to +70% daily sportswear output.
💡 INDUSTRY WORKFLOW See how this machine operates in European sportswear factories →
← Swipe horizontally to compare all models →
| Specification | RS-1612-V (Compact Workhorse) | RS-1812-V (Wide-Format Best Seller) | RS-1620-V (Extended Bed) | RS-1820-V (Flagship Ultra-Wide) | RS-Custom (Tailored Widths) |
|---|---|---|---|---|---|
| Working Area (W × L) | 1600 × 1200 mm | 1800 × 1200 mm | 1600 × 2000 mm | 1800 × 2000 mm | 2000 / 3200 mm / Bespoke |
| Laser Head Architecture | All models configurable with: Single Laser Head OR Dual-Sync™ Independent Twin Heads (+40% to +70% Output) | ||||
| Max Vector Cutting Speed | Ground Helical Rack & Pinion: 1,500 mm/s | High-Tensile Belt Drive: 500 mm/s | ||||
| DC Glass Tube Options | 100W / 130W / 150W | 100W / 130W / 150W | 130W / 150W | 130W / 150W | Configured per application |
| CO₂ RF Metal Tube Options | 100W / 150W / 200W / 300W | 100W / 150W / 200W / 300W | 150W / 200W / 300W | 150W / 200W / 300W | Up to 300W+ Dual RF |
| Repeat Positioning Accuracy | ± 0.05 mm | ||||
| Camera Vision Options | Area Scan HD Camera (<0.1s Fast Capture) OR LineScan™ Industrial Camera (3s 100% Zero-Distortion) | ||||
| Bed & Roll Feeding Options | Conveyor Honeycomb Bed; Standard Auto-Feeder OR TrueFeed™ Tension-Free Active Unwinder | ||||
| Optimal Fabric Formats | 1.6m roll jerseys, activewear, swimwear | 1.8m roll cycling wear, tracksuits, flags | 1.6m continuous flag runs, long pieces | 1.8m high-volume industrial nested production | Architectural textiles, 3.2m flags, bespoke |
// TECHNICAL KNOWLEDGE BASE
Deep-dive technical articles authored by RedShift optical and materials engineers to help you eliminate production bottlenecks, prevent fabric scorching, and calibrate cutting parameters.
OPTICS & HARDWARE
Why gantry speed isn't your true limit: compare Area-Scan, CCD, and Line-Scan optics, and see why feeding synchronization dictates daily output.
DEFECT PREVENTION
Aerodynamic & thermal analysis: how negative-pressure down-draft exhaust and laser pulse tuning stop yellow smoke stains on white polyester.
SPORTSWEAR PRODUCTION
An end-to-end engineering breakdown of automated roll unwinding, tension-free feeding, AI contour extraction, and instant edge sealing for high-volume activewear manufacturing.
BADGES & EMBROIDERY
Eliminate custom steel dies. Discover how full-bed optical scanning cuts hundreds of scattered badges in 3 seconds with zero white border bleed.
// EUROPEAN DIRECT SUPPORT
Direct technical coverage, rapid spare parts logistics, and hands-on machinery demonstrations spanning Western Europe, the Iberian Peninsula, Central & Eastern Europe, the Baltic corridor, and the Eurasian crossroads.
WESTERN & SOUTHERN HUBS
Dedicated certified agents providing live machinery demonstrations, rapid installation setup, and bilingual field technical service.
INDUSTRIAL MANUFACTURING BELT
Regional engineering centers with active spare parts inventory, on-site commissioning, and continuous production support.
NORTHERN MANUFACTURING
Local certified technician support for custom sportswear manufacturers, technical textile converters, and industrial signage producers.
EURASIAN CROSSROADS
Strategic regional parts depot, showroom facilities, and multi-language factory-certified engineers for immediate deployment.
🎯 Local On-Site Commissioning: Certified regional partner engineers ⚡ Priority Air-Express Dispatch: Optical components & consumables shipped direct from factory 🏬 Live Machinery Demonstrations: Inspect machines & test cut in Europe
// EUROPEAN CORRIDOR FIELD PROOF
Live test cutting on customer sublimation fabric conducted by our local technical team at an athletic wear facility in Poland.
▶ Explore All European Field Demos on YouTube (@redshiftlaser) →
// CLIENT FACILITY LIVE DEMO
Live footage from a European sportswear facility: automated roll feeding, markerless AI contour tracking, and high-speed cutting of team jerseys with zero edge discoloration.
▶ Explore Full Video Demonstrations on YouTube (@redshiftlaser) →
Direct Factory Engineering
Request a customized machine configuration, get direct factory pricing, or book a free 4K material test cutting report.
24-Hour Response GuaranteeDirect response from application engineering specialists.
Free 4K Video Material TestSend your material for cycle-time analysis and cut samples.
European Demo CentersVisit certified partner hubs across Western, Central & Eastern Europe.
Tell us your fabric specifications and production goals. Our engineering team responds within 2 business hours.
🔒 Strict NDA & IP Protection⚡ Guaranteed 24-Hour Response Time🇪🇺 Direct European Engineering Support
