Vision Laser Cutter

Specializing in Contour Cutting of Sublimation Fabrics

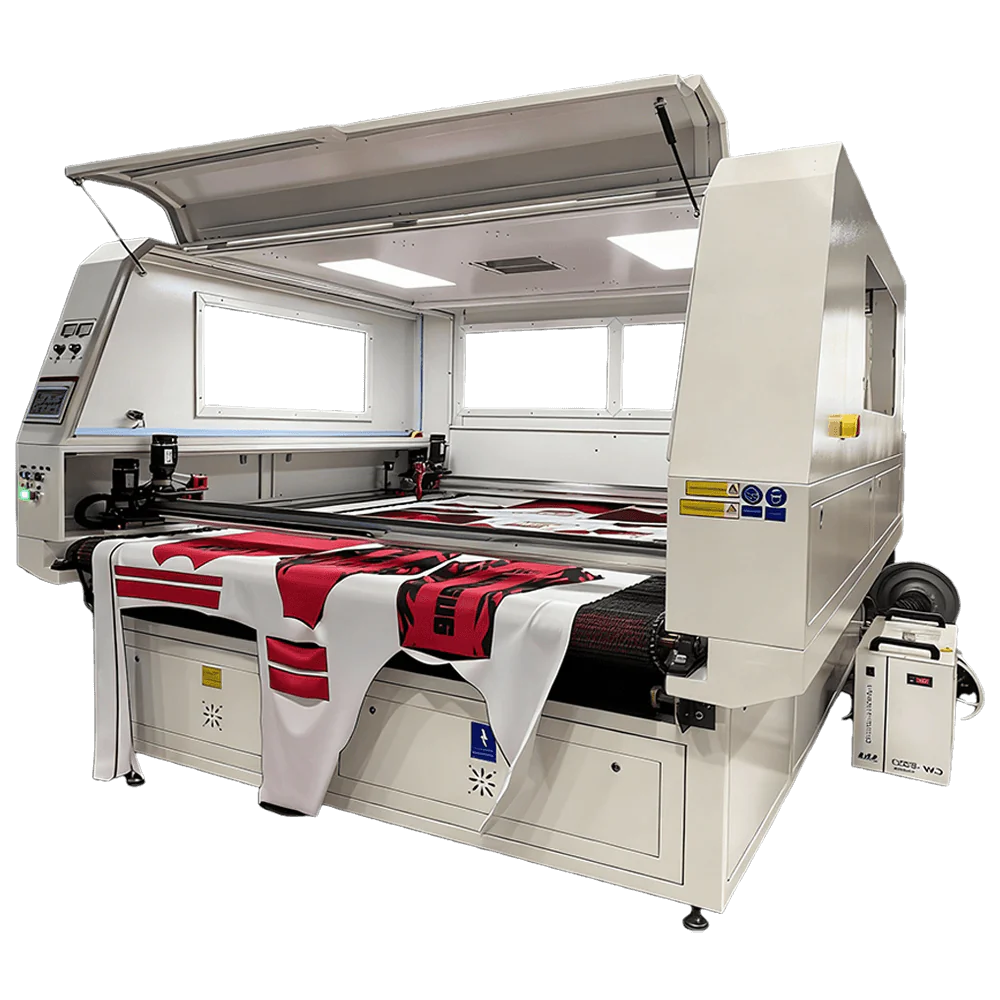

REDSHIFT Vision Laser Cutter with overhead camera, fully enclosure and dual laser heads is the optimal solution for contour cutting of sublimation printed fabrics and textiles.

RedShift Vision Laser Cutter Introduction

REDSHIFT Model: 1612/ 1812 / 1620 / 1820

RedShift Vision Laser Cutter adopts European standard design appearance, uses high-precision camera to image the entire processed material at one time, and can directly extract the outline of graphics for automatic processing, or use the feature points of graphics for positioning and cutting. It supports real-time modification during processing and is not restricted by multiple graphics. It is an excellent automatic solution for positioning processing such as digital printing and personalized signs.

RedShift Vision Laser Cutter Features

Automatic feeding system, more convenient and efficient for soft materials processing.
Auto calibration ensures fabric feeding in correct path and position.
Independent motion double laser head cutting system brings high work efficiency.
Full size conveyor table carries fabric.
Wide angle CCD camera shoots the full table size, which is good choice for cutting embroidery and printed fabric products.
CNC control system, RDC6685U control board, RDworks and RDvision software.
Suitable for mass production of large and medium-sized enterprises, as well satisfy the production needs of small enterprises and individual processors.
Machine working speed and laser power output can be adjusted in real time.

Specifications

Main Technical Specifications of the RedShift Vision Laser Cutter

Working area (WxL)	1600mmx1200mm / 1800mmx1200mm / 1600mmx2000mm / 1800mmx2000mm
Laser source	CO2 glass laser tube / CO2 RF metal laser tube
Laser power	150W
Working table	Chain conveyor working table
Mechanical control system	Belt transmission / Gear rack transmission & Servo motor drive
Cutting speed	1~500mm/s
Acceleration speed	500~4000mm/s²
Camera	Canon 1500D, EOS Camera with 2,400 Mega Pixels

RedShift Vision Laser Cutter Workflow

The RedShift Vision Laser Cutter is the perfect cutting system for the fast fashion, sportswear and textile industries, automating the cutting process in your production, replacing manual or traditional cutting methods.

Availability

Highlights of the RedShift Dual Head Vision Laser Cutting System

Independent Dual Heads

For the basic two laser heads cutting machine, the two laser heads are mounted in the same gantry, so they can only be used for the same patterns cutting. While for dye sublimation products, there are always many different types of print pieces, big pieces, or small pieces, all the pieces are different such as jerseys front, back, sleeves. The independent dual heads can cut different designs at the same time; so, it increases the cutting efficiency and production flexibility at the largest degree. Output increase ranges from 30% to 50% depends on what you cut.

Outline Contour Detection

The software detects the contour according to the big color difference between the printing outline and materials background. You do not have to use the original patterns or files; it is a fully automatic process without manual intervention. Detection of printed fabrics directly from rolls, without any preparation; and because the camera takes photos after the fabric is feeding to the cutting area, the precision will be very high.

Templates

When you cut very high distortion materials or need super high precision for patches, logos, you can use the templates instead of contour cut; the process is the software load your original design templates, and then camera take a photo and compare with your templates, then cut exactly the same size you want to cut; and you can set offset distance according to your production requirements.

Photo Digitize

If you do not always design by yourself or do not have the designers in your workshop, you can also use this machine as a “photo digitize” system. For example, you can put a garment piece underneath the camera, you can use the camera to take a photo of the garment piece and save it as a pattern files in your PC; next time you can use this pattern as a design pattern.

Feeding system with automatic correcting function

The motor-controlled automatic feeding system avoids the influence of external force dragging, overcomes the elastic characteristics of the printed fabric, and ensures the fabric without deformation during the feeding process.
The unique automatic rectification function keeps the error of continuous feeding within 5mm, achieving continuous, smooth and precise processing for roll fabrics.

24 million pixel HD camera

Full-format scanning (1600X2500) with a 24 megapixel HD camera for fast and accurate identification,continuous cutting for roll of fabrics.
Accurately identify image position and contour through the vision system, and automatically produce cutting graphics for precise cutting with an error of less than 0.5mm.

Application

Application Sectors of the RedShift 180120 Dual Head Vision Laser Cutting System

GET IN TOUCH →

Contact RedShift now to get a further information of how our vision laser cutting solutions help increase your cutting workshop productivity and efficiency.
