CO2 Laser Cutter

Cutting and Engraving a Wide Range of Nonmetal

Ideal for a huge range of market sectors and with advanced software control and MES system, RedShift laser machines provide optimal solutions tailored to your requirements.

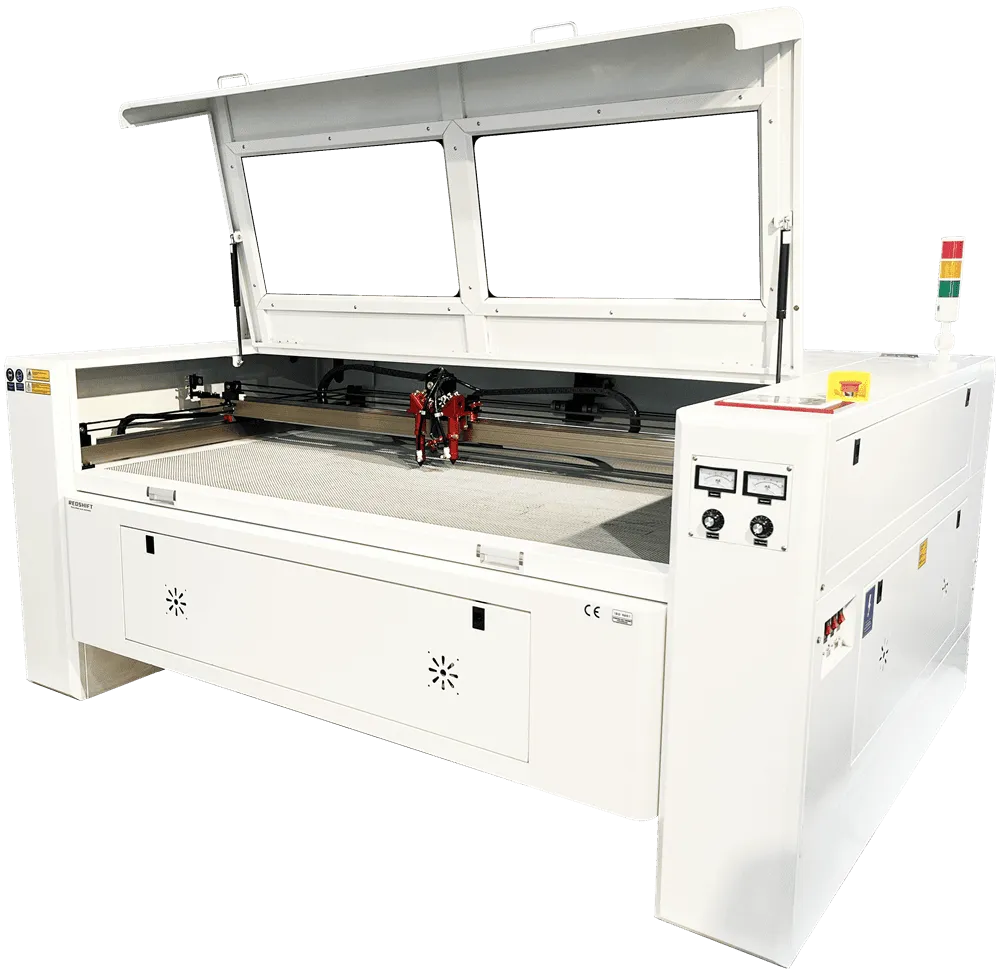

RedShift Laser Cutter Introduction

RedShift RSN Laser Machines are among the most versatile laser systems we offer, which are predominantly used for laser cutting, but also excels as laser engravers and laser markers. This series of single-head laser machines can be applied with MES system, which can display the real-time status of processing, and can record and count processing information. To fit to your actual needs we offer laser tube choices of 60, 100, 130 and 150 Watt and can also equip the machine with two laser tubes (and two beam paths) for a true doubling of production.

FEATURES

CO2 glass laser tube 150W output power
Single head or double head options
The water cooling system cools the laser tube to increase the lifespan and prevent damage
USB data transfer to the machine

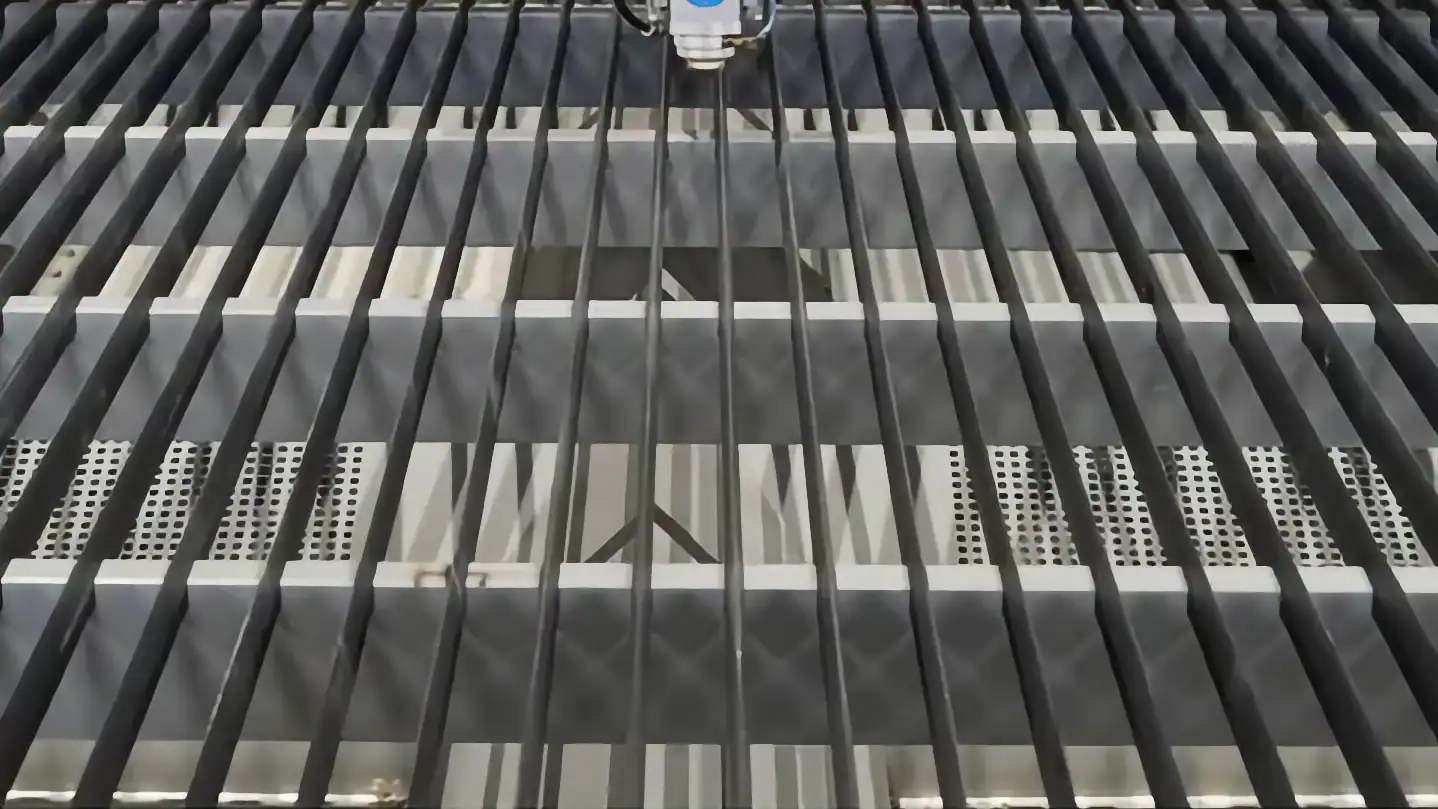

Under bed suction blower to remove smoke and keep the material firmly fixed to the working table

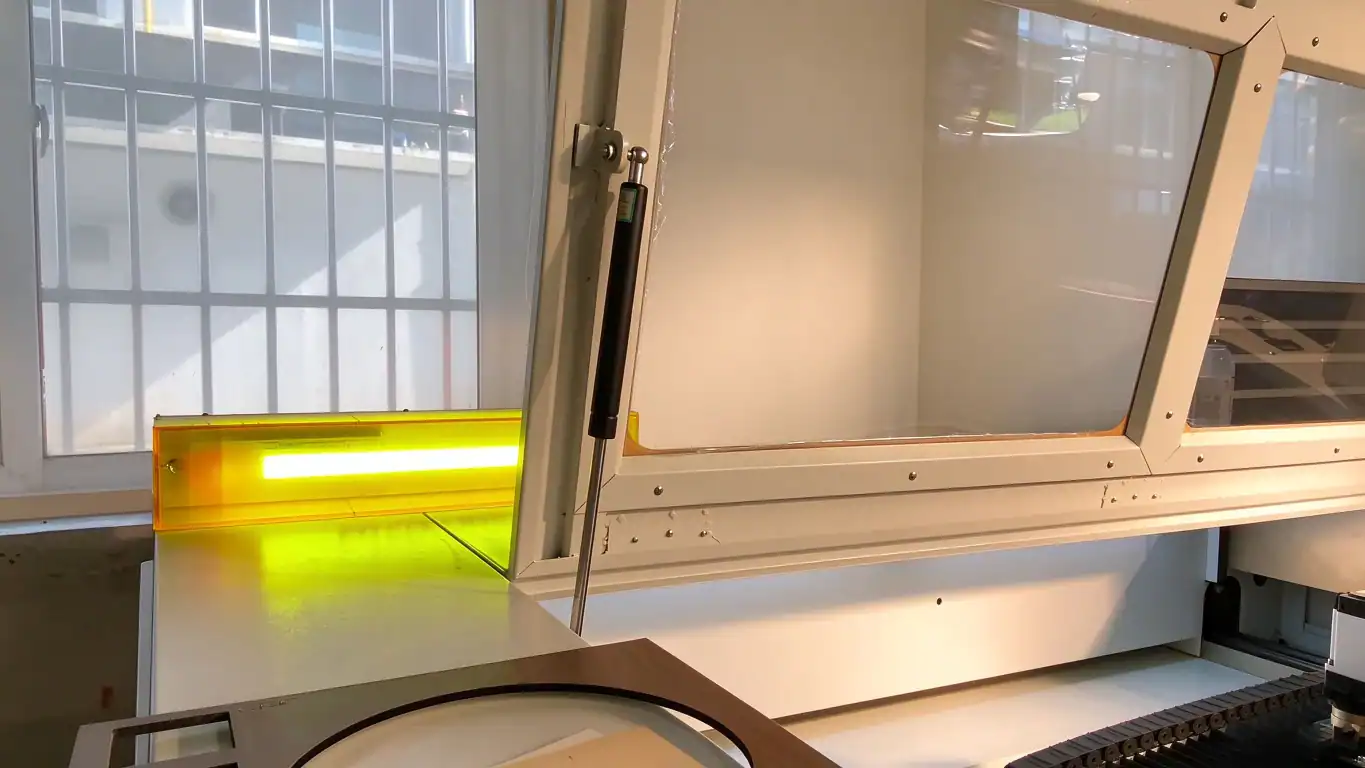

Safety hatch interlock to disable the machine when hatch is open
Separate X & Y directional control cards allowing independent X & Y moving of the head
DSP control system for smooth head movement

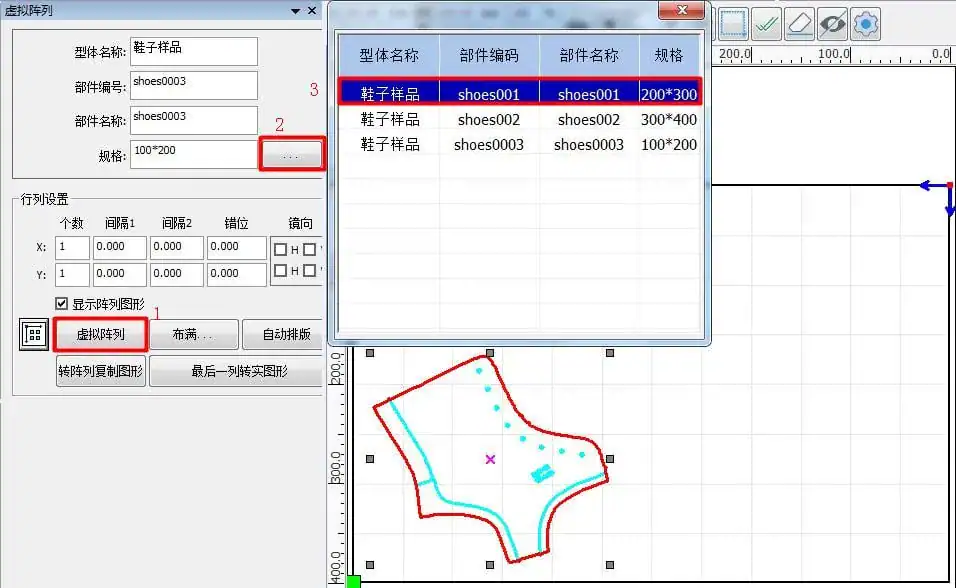

SOFTWARE

Ability to read and edit different file formats such as AI, BMP, DXF, PLT and DST, giving the freedom to work with different software such as Adobe Illustrator, Adobe Photoshop, Auto CAD, etc.
Cutting route optimisation enabling minimum changeover time between cuts.
Origin output, instant output and defined origin output features suiting different applications.
Layer processing order gives the ability to change the cutting sequence on an operation.
Includes array, rotate, mirror, offset, object dimensions and invert features.
Ability to simulate the cut or engraving on the software without doing the actual operation.
Freedom to use multiple layers, enabling different power settings for different areas of the same work piece.
Easy manipulation of machine maximum output power, speed, cutting origin and machine operation mode (cutting or engraving).

Laser Controller

Advanced RedShift CNC system with easy operation, multi-language options and excellent compatibility.

Play Video about how to set up mes system for redshift laser machines

MES SYSTEM

Real-time display of the process, recording and counting of process information.

Specifications

Main Technical Specifications of the RedShift RSN Laser Cutter

Model	RSN10060 / RSN13090 / RSN160100 / RSN180100
Working area	1000mmx600mm, 1300mmx900mm, 1600mmx1000mm, 1800mmx1000mm

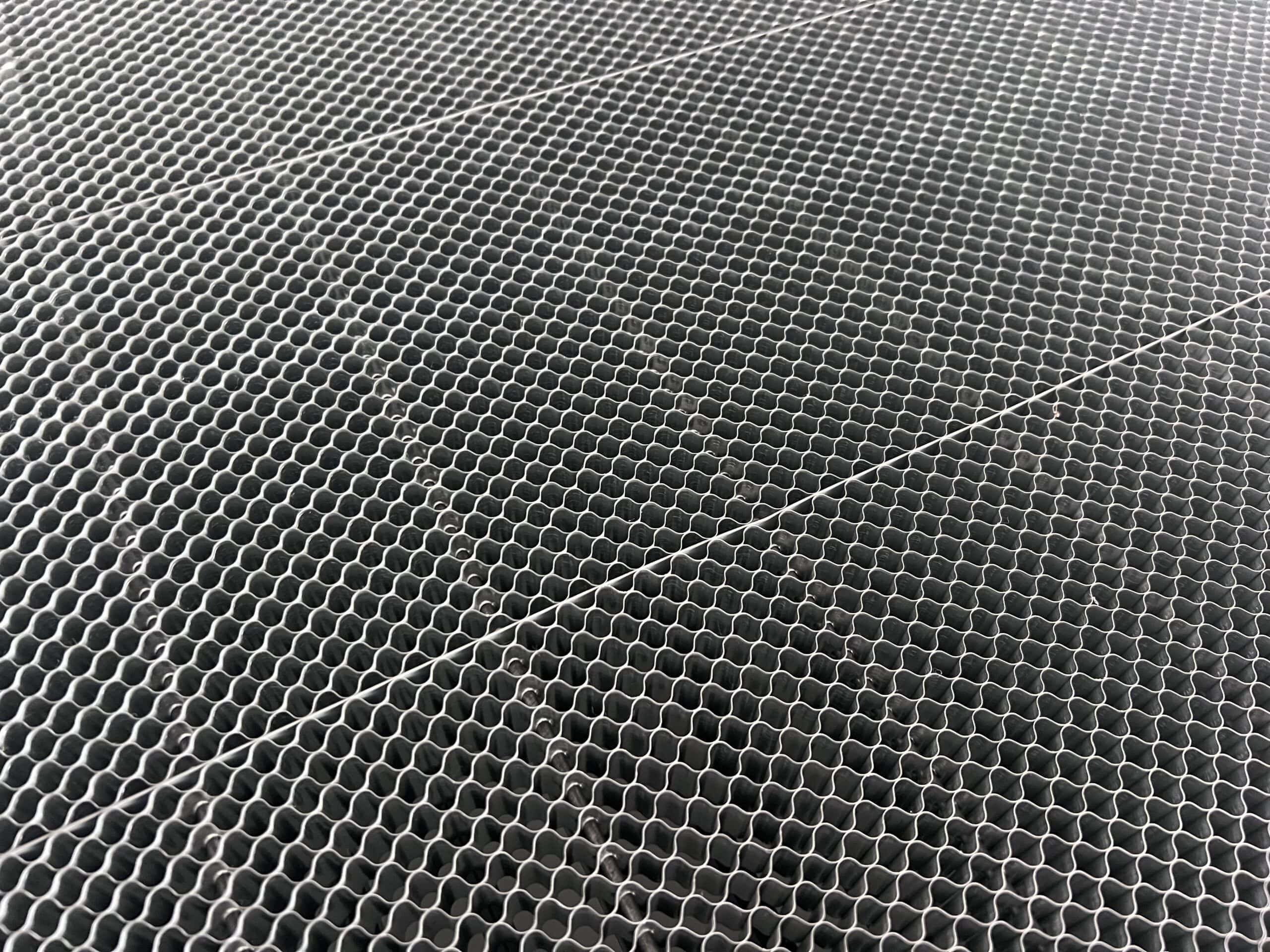

Working table	Honeycomb / conveyor / slat table

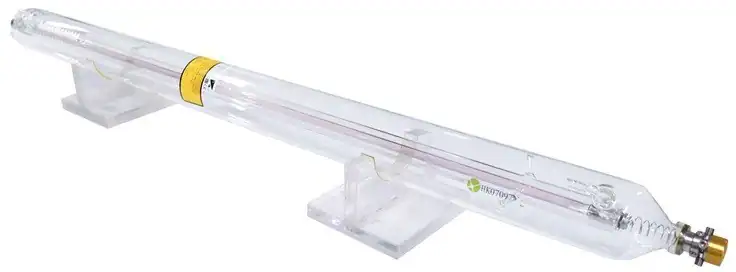

Laser tube	CO2 glass laser tube
Laser power	60W / 80W / 100W / 130W / 150W
Cutting speed	0-600mm/s
Engraving speed	0-1000mm/s
X/Y direction transmission	Belt drive
X direction drive	Stepping motor drive / Servo motor drive
Y direction drive	Stepping motor drive / Servo motor drive
Positioning accuracy	≤0.1mm
Control system	Ruida RDC6445G+RDworks
Motion system	Offline control system, touch screen display panel
Cooling system	Thermostatically controlled chiller

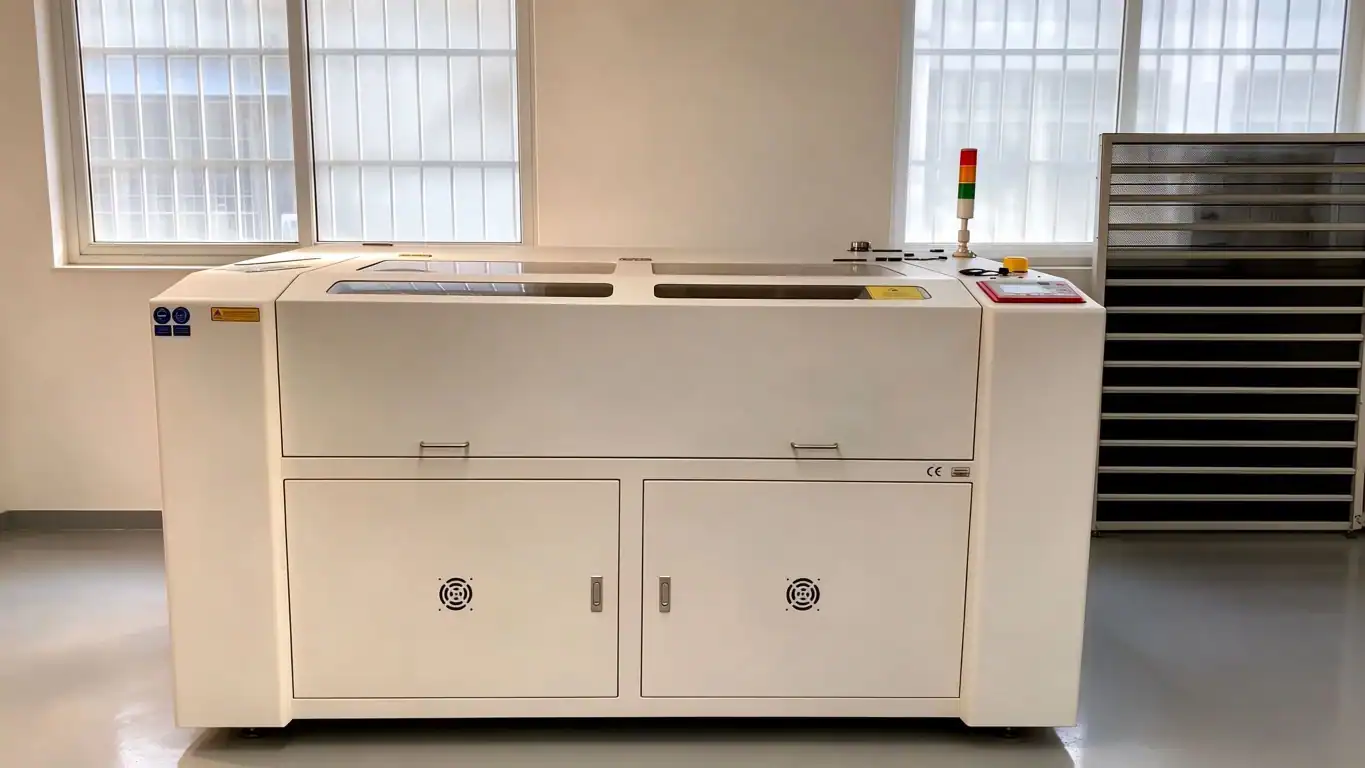

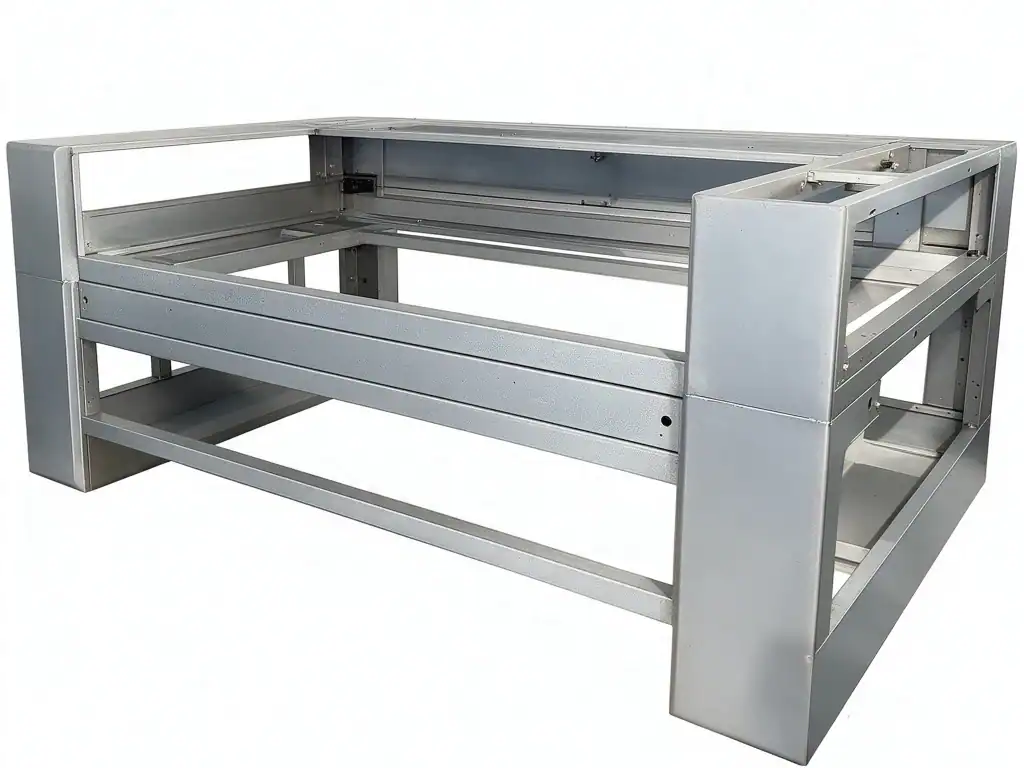

Machine structure	Covered and protected
Graphic format supported	DST, DXF, AI, PLT, BMP, etc.
Power supply	110V/220V, 50Hz/60Hz

Applications

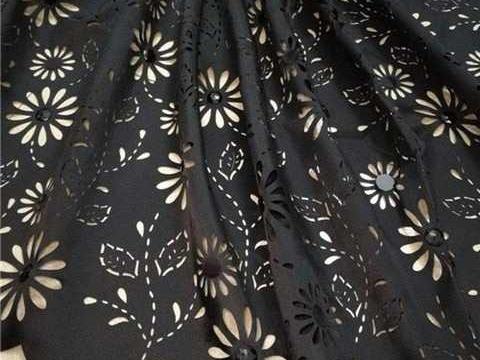

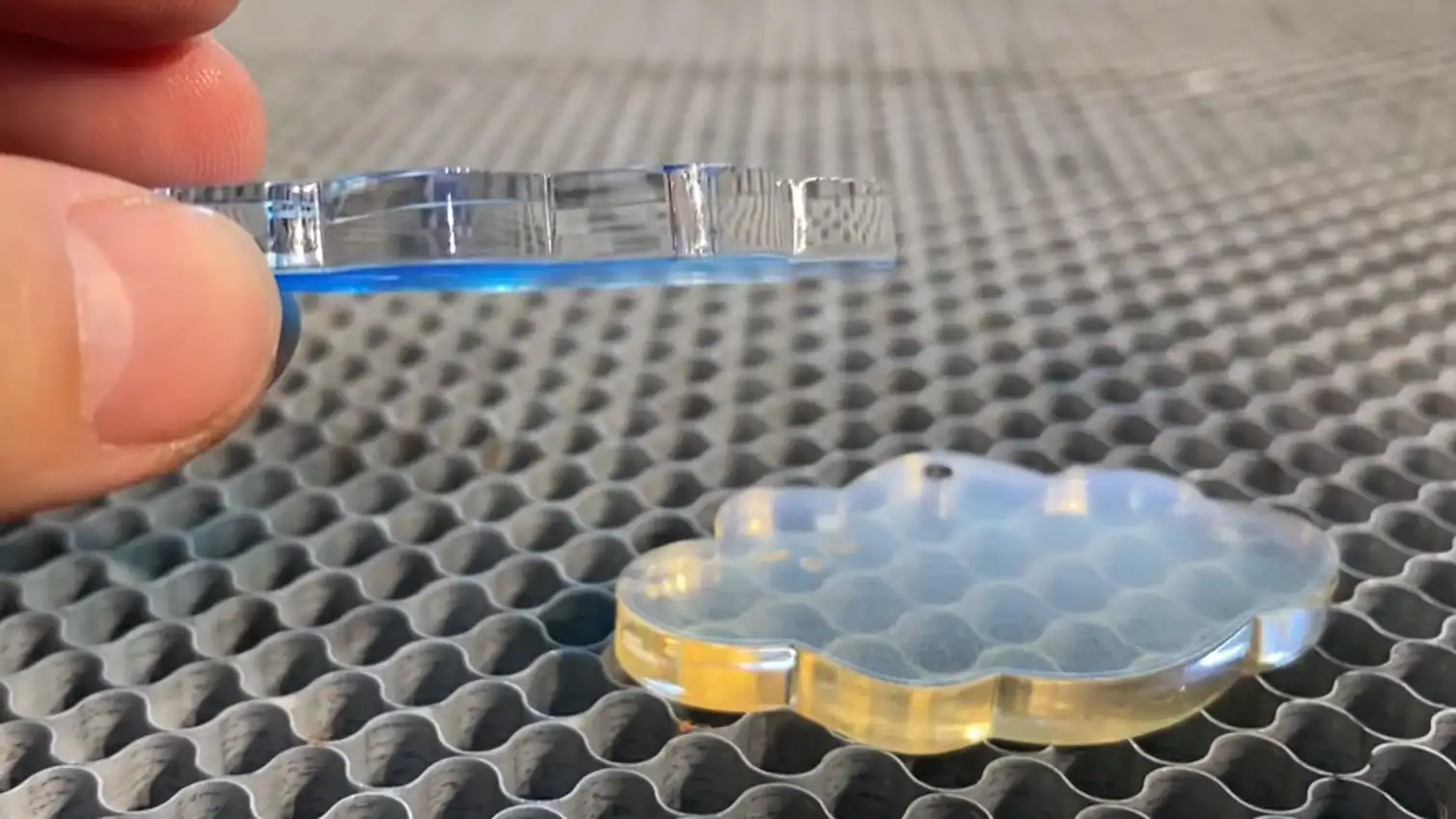

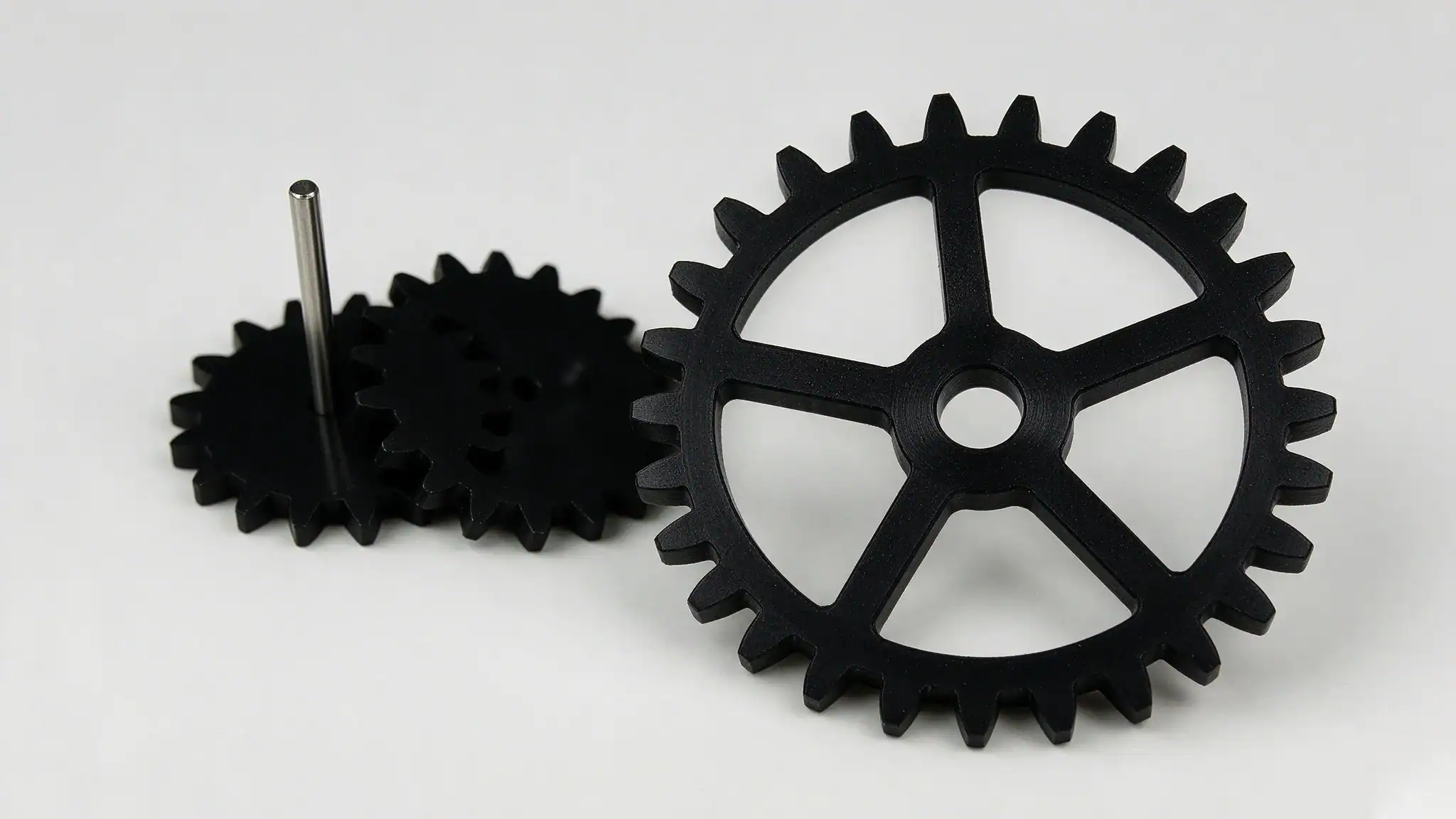

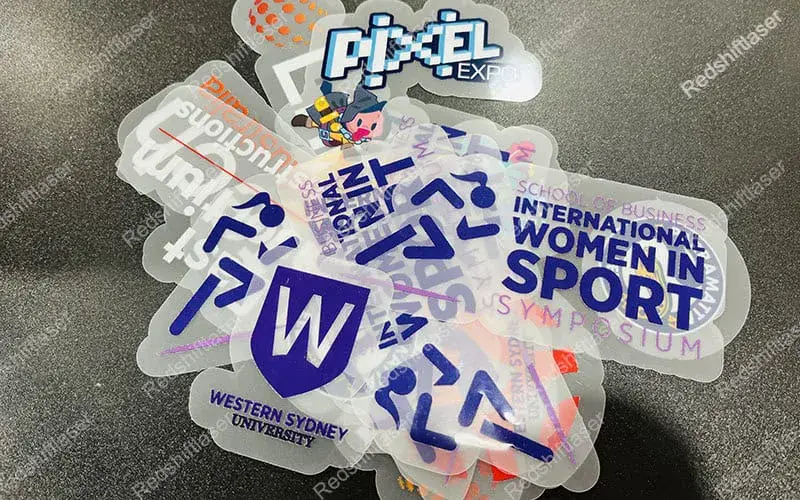

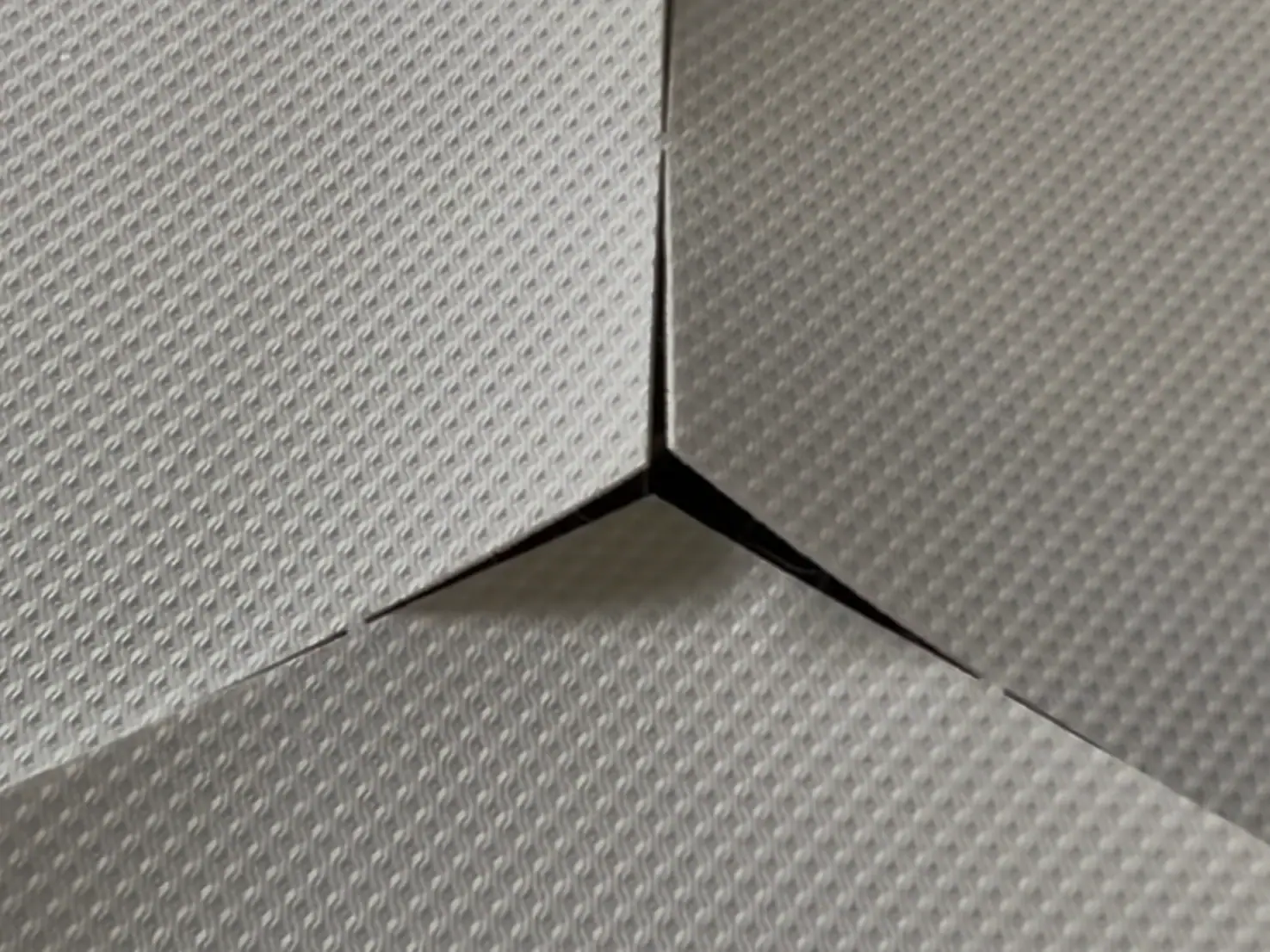

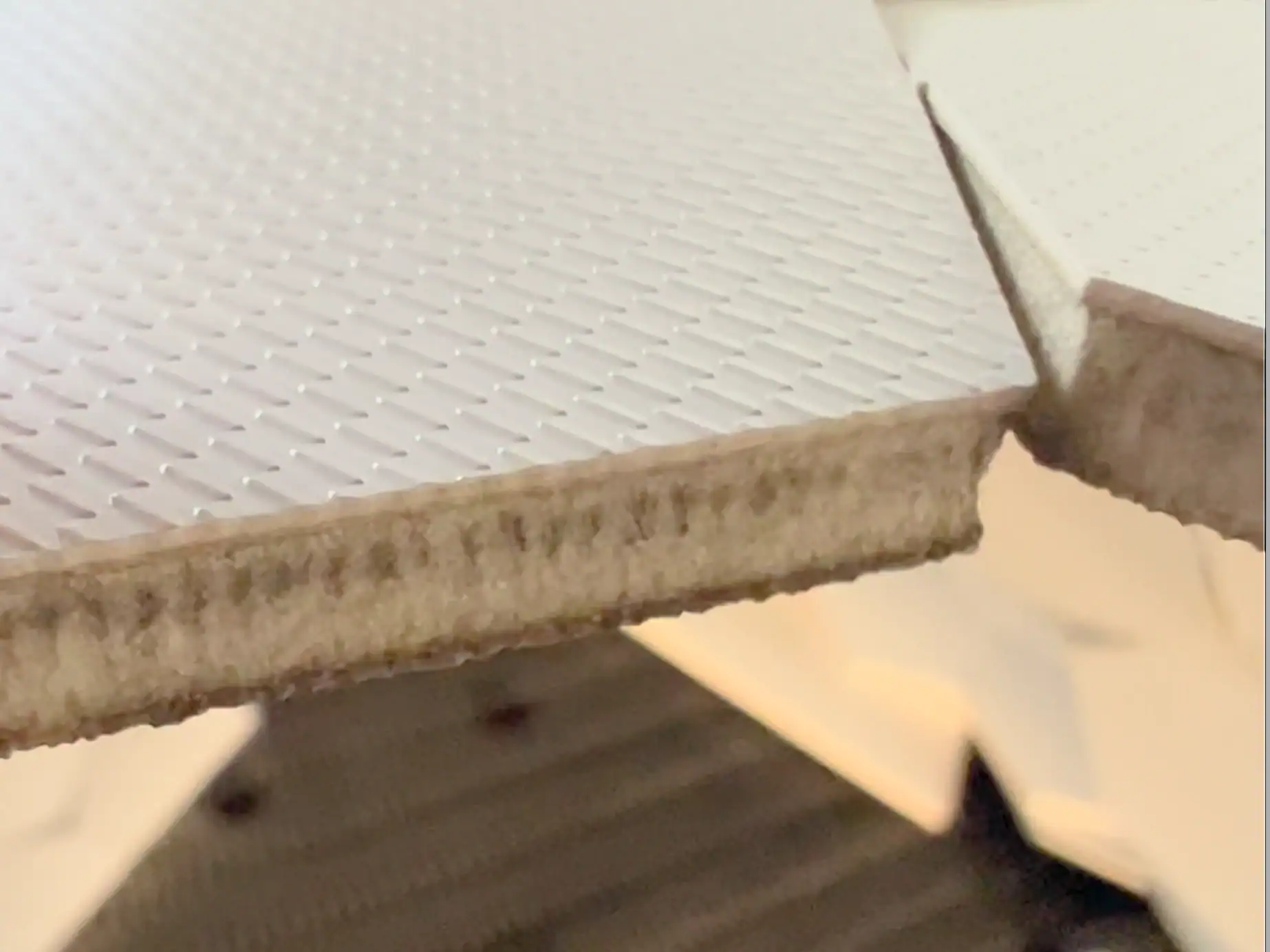

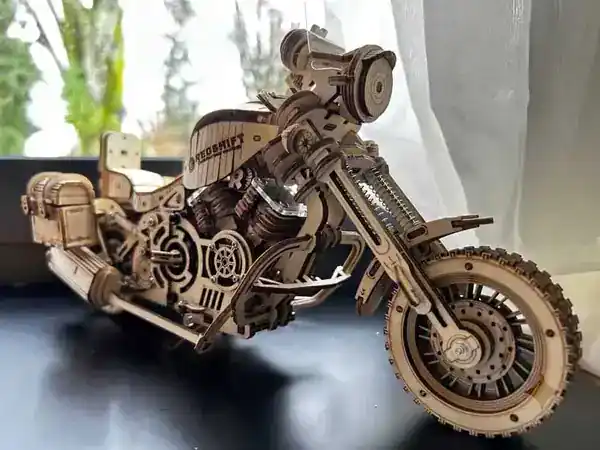

With a user-friendly RedShift laser machine, you cut and engrave the most varying materials. From wood to plastics and from textiles to cardboard. And that’s not all. What would you like to create? With our machine you can make it.
