Handheld Pulse Laser Cleaning Machine

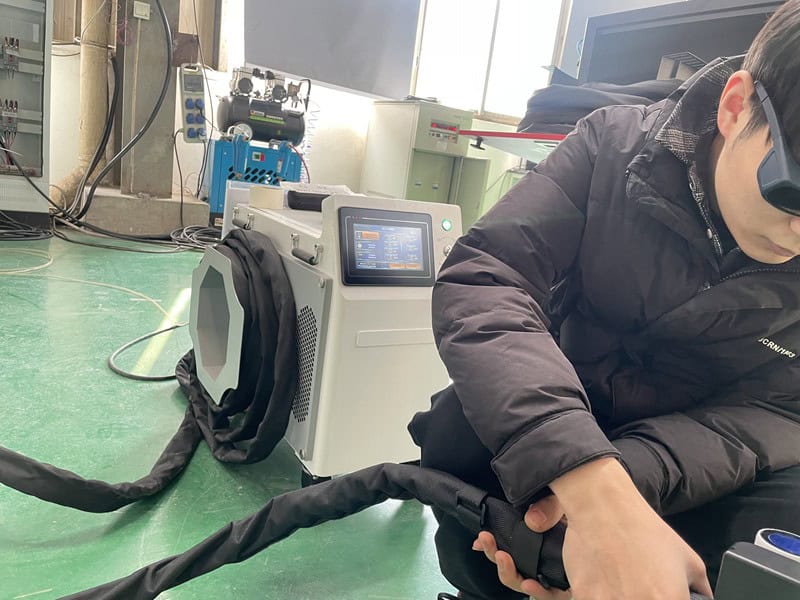

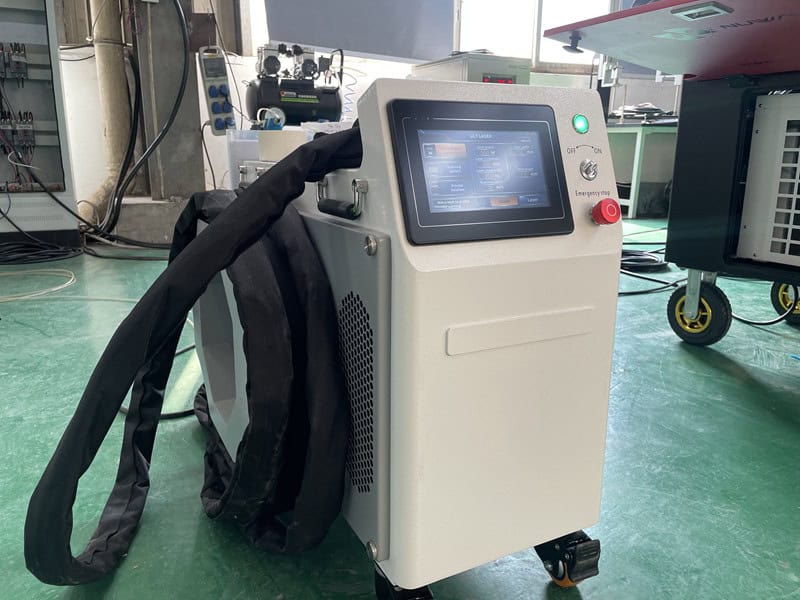

The handheld pulse laser cleaning machine is designed for flexible, non-contact surface cleaning applications. It utilizes pulsed laser beams to remove rust, paint, oil, oxide layers, or other unwanted substances from surfaces with high precision. The handheld design offers greater mobility and adaptability, making it ideal for on-site and hard-to-reach cleaning tasks.
Machine Features
- Ultra-light cleaning head for flexible operation
- Capable of cleaning parts of different shapes and sizes
- Infrared indicator focus
- Precise/controlled cleaning efficiency
- Universal wheels for flexible movement
- Power range from 100W to 1000W
Specifications
| Model | RSC100 | RSC200 / RSC300 | RSC500 / RSC1000 |
|---|---|---|---|
| Average laser power | 100W | 200W / 300W | 500W / 1000W |
| Central wavelength | 1064nm | ||
| Laser line-width | Length: 5mm ~ 150mm, adjustable; Width: 5mm ~ 150mm, adjustable | ||
| Scanning images | Support linear, 2D, circular, rectangular progressive scanning, rectangular ring, triangle, spiral | ||
| Cooling mode | Air cooling | Water cooling | |
| Fiber length | 5m | 10m | |
| Cleaning head weight | 1.3kg | 2kg | |
| Machine weight | 22kg | 60kg | 180kg |
| Machine size | L603×W258×H481mm | L783×W300×H784mm | L913×W573×H881mm |
| Voltage supply | AC220V±10% | ||
| Frequency | 50Hz | ||
| Power Consumption @ 25°C | ＜500W |
<1000w@RSC200 <1500w@RSC300 |
<4000w@RSC500 <6000w@RSC1000 |
| Air pressure supply | 0.4MPa clean compressed air with water and oil removed | ||
Redshift Laser Cleaning Machine Advantages
From the perspective of end users, most people only focus on laser power, believing that the high power is good.
In fact, there are many factors that affect it, such as single-mode/multi-mode, spot size, scanning speed, etc.
- High cleaning efficiency
- Strong cleaning ability
- Stable and reliable
- The whole machine is one-piece, not an assembled machine
Applications
This handheld pulse laser cleaning machine is principally devised for the purpose of cleansing diverse metal surfaces that are contaminated with local rust, paint, coatings, oil stains, oxide films and other pollutants. It can also be employed to clean the surfaces of non-metallic substrates like ceramics, glass and composite materials. Typical application scenarios encompass the removal of the natural oxide film on aluminum alloy prior to welding, the elimination of black and gray oxides on battery trays subsequent to welding, the cleansing of welds on train bogies before flaw detection, the purification of car sheet metal parts prior to refurbishment, and the tidying up of parts such as small holes and grooves in steel components that cannot be accessed by wire brushes.
