Distinctive Features
Seamless Continuous Operation: Facilitates uninterrupted feeding and processing workflows.
Broad Material Compatibility: Adaptable to a wide array of materials, catering to diverse application needs.
Cost-Effective Solution: Significantly reduces both labor and time expenses.
Enhanced Automation: Equipped with advanced automatic devices for improved efficiency.
Customizable Feeding Capacity: Allows for adjustable feeding output to meet various production requirements .
Redshift Auto-feeder: The Ideal Solution
Struggling with the challenges of automatic textile feeding? Or seeking an efficient way to handle a high proportion of spandex materials? Look no further than the Redshift Laser Feeding System. In today’s manufacturing landscape, materials span from home textiles and garment fabrics to industrial fabrics, each with unique characteristics such as thickness, weight, dimensions (length and width), and surface smoothness. To achieve efficient and convenient processing, customized feeding systems have become an essential asset for manufacturers.
The feeding system acts as a crucial link between the material and the conveyor table of the laser machine. It serves as a medium that supports and continuously feeds roll materials at a specified speed. This ensures that the cutting process is carried out with optimal flatness, smoothness, and the right amount of tension, resulting in high – quality output.
Different Varieties of Feeding system:

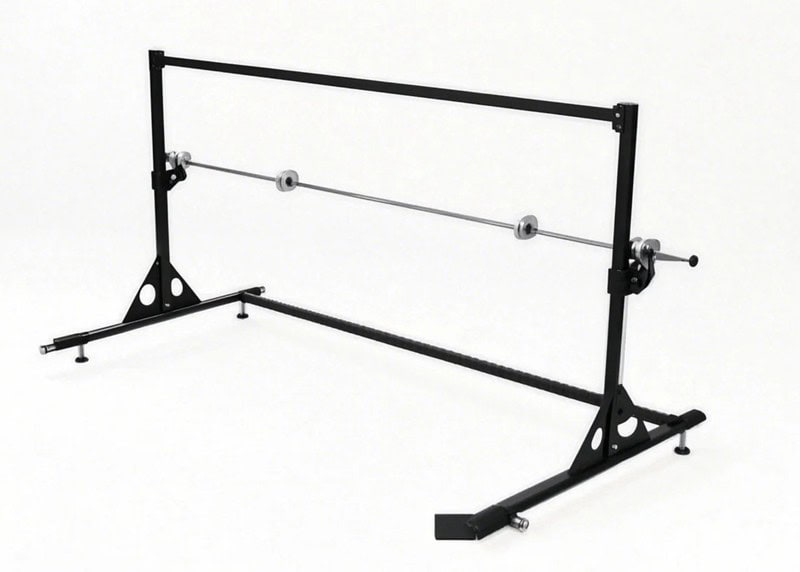

1. Simple feeding rack
| Item | Details |
| Applicable Materials | Ideal for light leather and light garment fabrics |
| Optimal Laser Equipment | CO2 Laser Cutter with Conveyor and Collection Table |
| Load-bearing Capacity | Can handle a maximum weight of 80kg |
| Maximum Roll Dimension | Accommodates rolls with a diameter of up to 400mm (15.7 inches) |
| Width Specifications | Available in two widths – 1600mm (62.9 inches) and 2100mm (82.6 inches) |
| Deviation Adjustment | Does not feature automatic deviation correction functionality |
| Key Advantages | Cost-effective solution Simple installation and user-friendly operation Specifically designed for processing light roll materials |
2. Double-roller deviation-correcting feeding system (Automatic Feeding System）
Item | Details |
Applicable Materials | A variety of materials such as polyester fabric, nylon, spandex, garment fabric, and leather. |
Recommended Laser Machine | |
Weight Capacity | Can reach up to 120kg |
Max Rolls Diameter | 500mm (19.6 inches) |
Width Options | Multiple choices including 1600mm (62.9 inches), 1800mm (70.8 inches), 2500mm (98.4 inches), and 3000mm (118.1 inches) |
Automatic Deviation Correction Function | Equipped with an automatic deviation correction function to ensure accurate feeding of the edge position. |
Features | – Achieve accurate feeding with the deviation correction system. – Have a wide range of material adaptability. – Convenient to load the rolls. – High degree of automation.<br> – Suitable for the processing of various products such as sportswear, swimwear, leggings, banners, carpets, curtains, etc. |
