CO₂ Laser Hybrid Cutting Machine
For Non-metal & Metal
The Redshift Laser RZ-1390 is a professional-grade hybrid CO₂ laser cutting and engraving system, designed for both metal and non-metal materials.
Built with a reinforced chassis and precision optics, it handles wood, acrylic, leather, and plastic with exceptional accuracy – while also cutting thin stainless steel and mild steel efficiently.
Machine Features

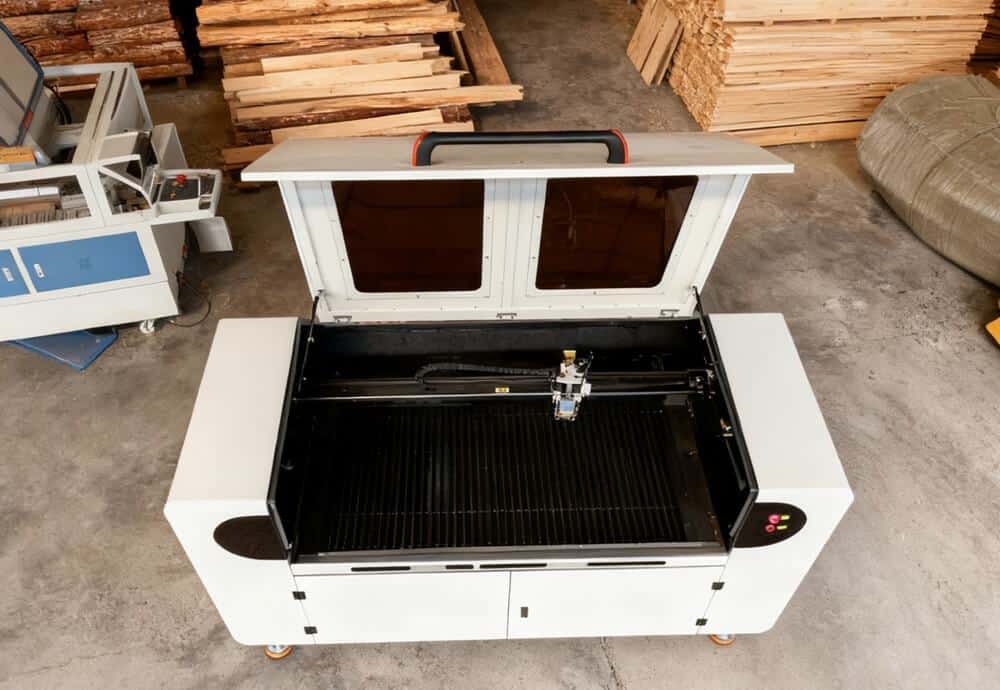

REDSHIFT Model: RZ-1390
Designed for professional workshops and small to medium-scale manufacturers, the Redshift Laser RZ-1390 is a professional-grade hybrid CO₂ laser cutting system designed for both metal and non-metal materials.
Built with a reinforced chassis, precision optics, and a rack and pinion transmission system, it delivers high-speed operation with exceptional accuracy and stability.

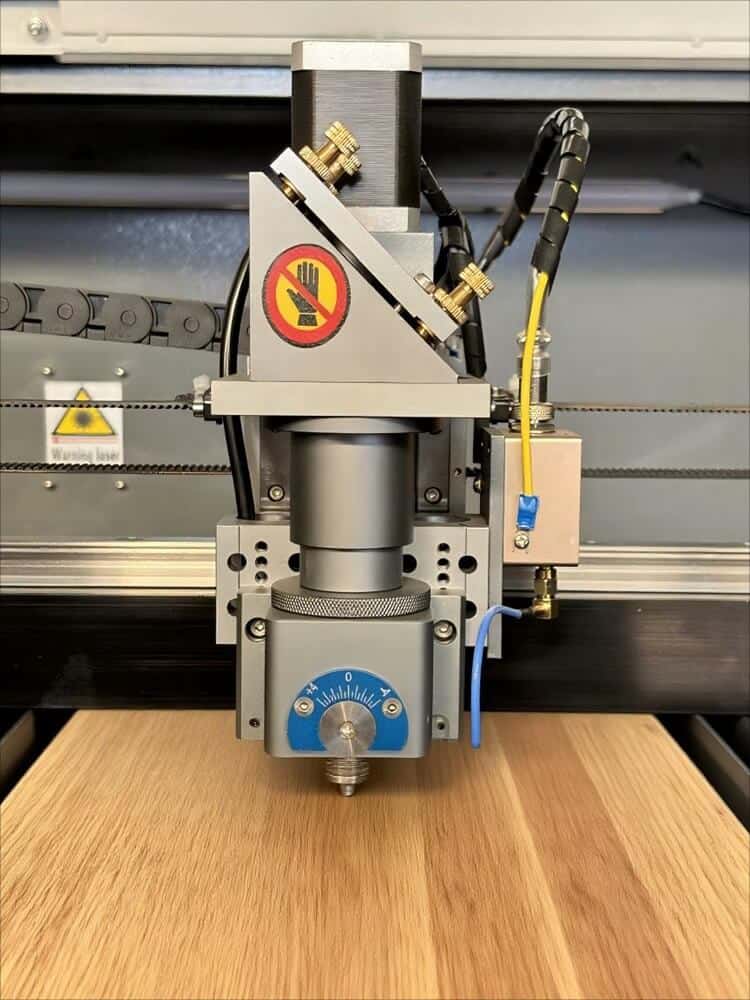

It handles wood, acrylic, leather, and plastic effortlessly, while also cutting thin stainless steel and mild steel efficiently.
Combining high precision, speed, and material flexibility, it’s the ideal solution for signage production, decorative fabrication, and light metal processing.

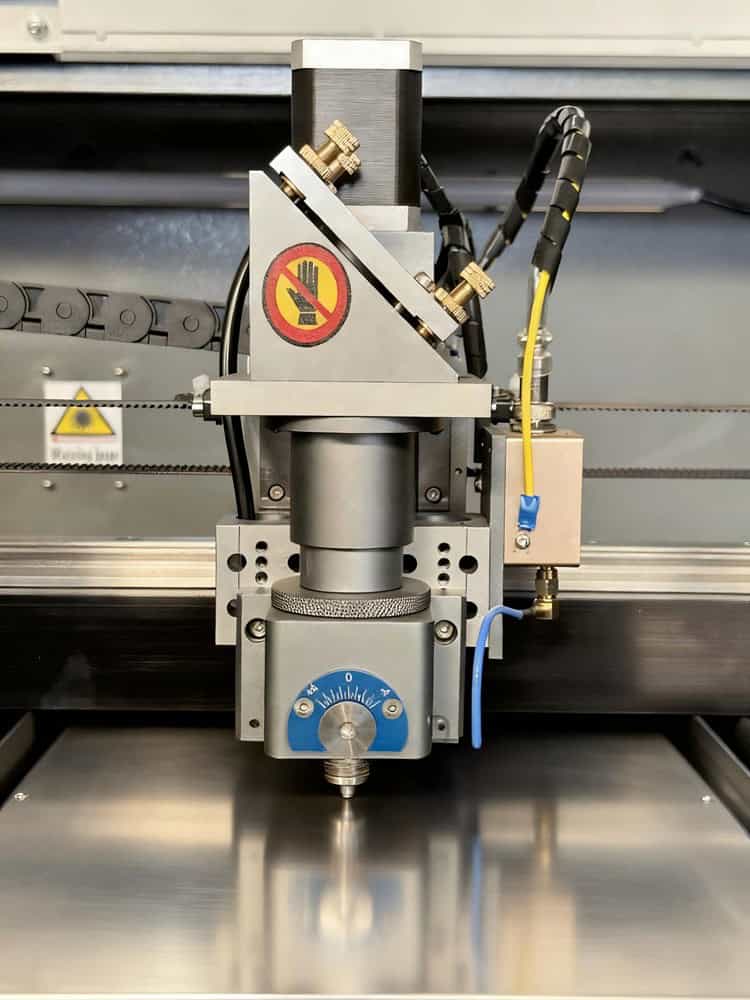

Compared with fiber laser systems, hybrid CO₂ lasers are a cost-effective and versatile solution offering easier maintenance and compatibility with a wider range of materials. When cutting metals, supplemental gases such as oxygen or nitrogen ensure cleaner edges and minimal slag.
· Versatile Cutting
Cut both non-metals and thin metals with one hybrid system.
· Precision & Stability
Built with precision motion control for smooth edges and consistent accuracy.
· Easy Maintenance
Lower operating cost and easier maintenance than fiber laser systems.
· Reinforced Frame
Reinforced chassis ensures stability during high-speed rastering and metal cutting.
· Autofocus (Optional)
Optional autofocus system for effortless metal cutting setup.
Specifications
| Model NO. | RZ-1390 | |
|---|---|---|
| Laser Type | CO2 laser | |
| Laser Power | 150 W / 300 W | |
| Cutting Speed | 0 – 300 mm/s | |
| Engraving Depth | ≤ 1.2 mm | |
| Resolution | 0.005mm | |
| Positioning Accuracy | ± 0.01 mm | |
| Total Power | < 1300 W | |
| Supported File Formats | BMP, PLT, DWG, DXF, DST | |
| Power Supply | AC 220 V ± 10 %, 50 Hz | |
| Cooling System | Water Cooling | |
| Assist Gas | O₂ / N₂ (For metal cutting) | |
GET IN TOUCH WITH US →
Contact REDSHIFT LASER now to get a further information of how our laser cutting solutions help increase your cutting flexibility, productivity and efficiency.
