CO2 Laser Cutter

with Conveyor and Collection Table

Automate your roll fabrics cutting workflow and boost productivity with Redshift’s high-performance laser system.

Machine Introduction

REDSHIFT Model: 1610C / 1612C / 1614C / 1810C / 1812C / 1814C

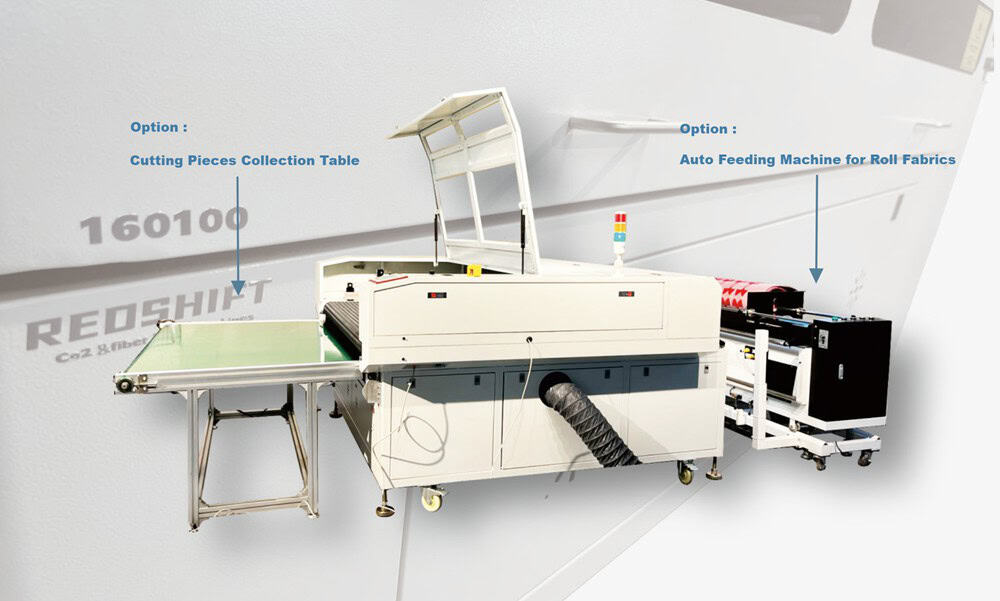

Redshift Laser’s CO2 laser cutter with auto feeder, conveyor platform, and collection table is designed for roll textiles and flexible materials cutting production. This all-in-one system enables automatic material feeding, continuous laser cutting, and efficient finished product collection – minimizing manual labor and maximizing cutting efficiency.

Whether you’re in garment manufacturing, home textiles, or technical textiles, this machine is engineered to streamline your workflow and deliver perfect results every time.

Automatic Feeding System

Handles fabric rolls with ease, enabling non-stop production and reducing downtime caused by manual loading.

Conveyor Belt Cutting Platform

The synchronized belt system ensures continuous feeding and precise positioning, ideal for large-format or long-length fabrics.

Auto Collection Table

Finished pieces are neatly conveyed and collected at the rear table, ready for packaging or further processing.

Machine Video

Redshift CO2 Laser Cutter with Conveyor in Action: A Redshift Customer Workshop Showcase

Specifications

Main Technical Specifications of the RedShift Roll Material Laser Cutter

Model	1610C / 1612C / 1614C / 1810C / 1812C / 1814C
Working area	1600mmx1000mm, 1600mmx1200mm, 1600mmx1400mm, 1800mmx1000mm, 1800mmx1200mm, 1800mmx1400mm
Working table	Conveyor
Laser tube	CO2 glass laser tube / CO2 RF metal laser tube
Laser power	80W / 100W / 130W / 150W / 300W
Cutting speed	0-600mm/s
Engraving speed	0-1000mm/s
X/Y direction transmission	Belt drive / Gear rack
X direction drive	Stepping motor drive / Servo motor drive
Y direction drive	Stepping motor drive / Servo motor drive
Positioning accuracy	≤0.1mm
Control system	Ruida RDC6445G+RDworks
Motion system	Offline control system, touch screen display panel
Cooling system	Thermostatically controlled chiller
Machine structure	Covered and protected
Graphic format supported	DST, DXF, AI, PLT, BMP, etc.
Power supply	220V, 50Hz/60Hz
